L&T Filing Shelves
L&T Filing Systems are incredibly durable, easily accessible and attractively designed. With its unique interlocking keyhole slot design, shelf supports are secured to the inside wall, leaving a smooth, clean appearance. The L&T is as dependable and versatile a filing system as you’re likely to find.

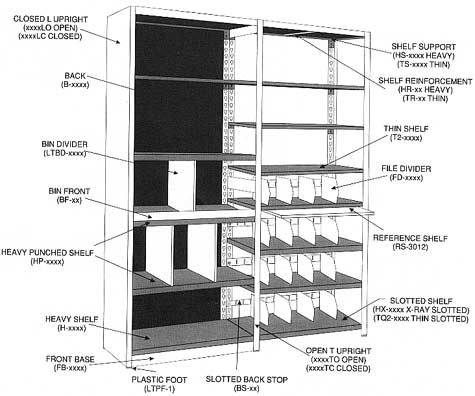

Anatomy of the L&T system:
Tennsco L&T systems use a unique interlock design to combine strength and rigidity for extra functional flexibility and assembly ease.
L-Shaped (row ends) and T-shaped (intermediate) welded upright assemblies have double walled members with specially design keyslots. Shoulder rivets on horizontal supports lock in to the keyslots, providing a rigid framework upon which the system builds to meet your needs. You get the strength of welds with added flexibility and lower cost.
Our unique keyslot design allows fast and easy asembly of major components with no bolts, nuts or tools.
Sizes and Prices:
Open Shelf – 76″ High, 18 Gauge
Open Shelf – 88″ High, 18 Gauge
Features:
- Sleek Attractive Appearance
- Long-Lasting Finish
- Strong Steel Returns
- Extra High Dividers
- Thin Profile Shelf Supports
- Anchoring Capabilities
- Contemporary Styling
- Easy Assembly
- Sturdy Shelves
- Numerous Shelving Options
- Mezzanine Support
- Connects to Mobile Track
L&T Shelving can be easily assembled in minutes without fasteners or tools.
Step 1
Place uprights opposite each other, held with a shelf support. Then, starting from the bottom up, insert additional shelf supports. Uprights are available in both open and closed styles ranging in size from 40″ to 18′ high and six depths up to 30″ deep.
Step 2
Lay shelf over supports, then add two more supports to the next location, set the shelf in and continue up the unit. Thin profile shelf supports can handle up to 400 lbs.
Step 3
Add extra sections by using “T” uprights as common center posts and finish the row with “L” uprights. Install shelves as before. Shelves are made of 22 or 18 gauge steel with a reinforcement flange on all sides and are available with or without divider slots in three widths and six depths.
